      20×4 LCD Module Control Using Python

      28
      By Matt on August 9, 2012 Hardware, Python, Tutorials & Help

      This article is based on my previous article 16×2 LCD Module Control Using Python and 16×2 LCD Module Control With Backlight Switch. 20×4 LCD modules are relatively easy and cheap to obtain. They have the same 16 pin interface as the 16×2 modules but still only require 6 GPIO pins on your Pi (an extra pin is required for the backlight switch).

      These modules are compatible with the Hitachi HD44780 LCD controller. There are plenty available on eBay with a variety of backlight colours to choose from.

      LCD Module Hardware

      The pinout of the module is :

      1. Ground
      2. VCC (Usually +5V)
      3. Contrast adjustment (VO)
      4. Register Select (RS).
        RS=0: Command, RS=1: Data
      5. Read/Write (R/W).
        R/W=0: Write, R/W=1: Read
      6. Enable
      7. Bit 0 (Not required in 4-bit operation)
      8. Bit 1 (Not required in 4-bit operation)
      9. Bit 2 (Not required in 4-bit operation)
      10. Bit 3 (Not required in 4-bit operation)
      11. Bit 4
      12. Bit 5
      13. Bit 6
      14. Bit 7
      15. LED Backlight Anode (+)
      16. LED Backlight Cathode (-)

      Usually the device requires 8 data lines to provide data to Bits 0-7. However this LCD can be configured to use a “4 bit” mode which allows you to send data in two chunks (or nibbles) of 4 bits. This reduces the number of GPIO connections you need when interfacing with your Pi.

      Here is how I wired up my LCD :

      LCD PinFunctionPi FunctionPi Pin
      01GNDGNDP1-06
      02+5V+5VP1-02
      03Contrast
      04RSGPIO7P1-26
      05RWGNDP1-06
      06EGPIO8P1-24
      07Data 0
      08Data 1
      09Data 2
      10Data 3
      11Data 4GPIO25P1-22
      12Data 5GPIO24P1-18
      13Data 6GPIO23P1-16
      14Data 7GPIO18P1-12
      15+5V via 560 ohm
      16GNDP1-06

      NOTE : The RW pin allows the device to be be put into read or write mode. I tied this pin to ground to prevent the module attempting to send data to the Pi as the Pi can not tolerate 5V inputs on its GPIO header.

      Pin 3 : In order to control the contrast you can adjust the voltage presented to Pin 3. I used a 10K ohm trimmer to provide a variable voltage of 0-5V to Pin 3 which allows the contrast to be tweaked.

      Pin 15 : This provides power to the backlight LED. In order to allow the backlight to be turned on and off I used a transistor (BC547, BC548 or equivalent) to switch this pin. This required an additional GPIO pin to switch the transistor but allowed my Python script to control the backlight.

      Wiring Checks

      Here are some sanity checks before you power up your circuit for the first time :

      • Pin 1 (GND), 3 (Contrast), 5 (RW) and 16 (LED -) ( should be tied to ground.
      • Pin 2 should be tied to 5V. Pin 15 should have a resistor inline to 5V to protect the backlight.
      • Pin 7-10 are unconnected
      • Pin 11-14 are connected to GPIO pins on the Pi

      Python

      The script below is based heavily on the code presented in my 16×2 LCD Module Control With Backlight Switch article. This allows the backlight to be switched on and off as well as some basic text justification.

      As usual I am using the excellent RPi.GPIO library to provide access to the GPIO within Python.

      The features of this setup include :

      • 10k variable resistor to adjust the contrast
      • 2k variable resistor to adjust the backlight brightness
      • A transistor to allow the backlight to be switched on and off
      • Left, centred and right justified text

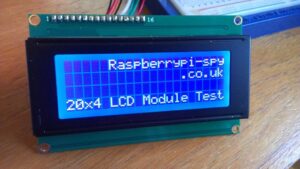

      The breadboard circuit looks like this :

      Contrast Adjustment

      Pin 3 is routed to Ground via a 10K ohm trimming pot so that the display contrast can be adjusted.

      Backlight Brightness and Switching

      Pin 15/16 are in series with a 560 ohm and 2K ohm trimming pot via an NPN transitor which is activated by an additional GPIO connection. The LCD backlight is treated in exactly the same way I switch standard LEDs in my previous Control LED Using GPIO Output Pin article. Using a fixed resistance ensures the resistance can never be adjusted below 560 ohm which protects the backlight if you set the trimming pot to zero ohms. The base of the transistor is wired to an additional GPIO pin via a 27K ohm resistor.

      Text Justification

      The function “lcd_string” accepts a second parameter (1, 2 or 3) which determines how the text is displayed on the screen.

      Python

      Here is the code :

      #!/usr/bin/python
      #--------------------------------------
      #    ___  ___  _ ____
      #   / _ \/ _ \(_) __/__  __ __
      #  / , _/ ___/ /\ \/ _ \/ // /
      # /_/|_/_/  /_/___/ .__/\_, /
      #                /_/   /___/
      #
      #  lcd_16x2.py
      #  20x4 LCD Test Script with
      #  backlight control and text justification
      #
      # Author : Matt Hawkins
      # Date   : 06/04/2015
      #
      # https://www.raspberrypi-spy.co.uk/
      #
      #--------------------------------------

      # The wiring for the LCD is as follows:
      # 1 : GND
      # 2 : 5V
      # 3 : Contrast (0-5V)*
      # 4 : RS (Register Select)
      # 5 : R/W (Read Write)       - GROUND THIS PIN
      # 6 : Enable or Strobe
      # 7 : Data Bit 0             - NOT USED
      # 8 : Data Bit 1             - NOT USED
      # 9 : Data Bit 2             - NOT USED
      # 10: Data Bit 3             - NOT USED
      # 11: Data Bit 4
      # 12: Data Bit 5
      # 13: Data Bit 6
      # 14: Data Bit 7
      # 15: LCD Backlight +5V**
      # 16: LCD Backlight GND

      #import
      import RPi.GPIO as GPIO
      import time

      # Define GPIO to LCD mapping
      LCD_RS = 7
      LCD_E  = 8
      LCD_D4 = 25
      LCD_D5 = 24
      LCD_D6 = 23
      LCD_D7 = 18
      LED_ON = 15

      # Define some device constants
      LCD_WIDTH = 20    # Maximum characters per line
      LCD_CHR = True
      LCD_CMD = False

      LCD_LINE_1 = 0x80 # LCD RAM address for the 1st line
      LCD_LINE_2 = 0xC0 # LCD RAM address for the 2nd line
      LCD_LINE_3 = 0x94 # LCD RAM address for the 3rd line
      LCD_LINE_4 = 0xD4 # LCD RAM address for the 4th line

      # Timing constants
      E_PULSE = 0.0005
      E_DELAY = 0.0005

      def main():
        # Main program block

        GPIO.setmode(GPIO.BCM)       # Use BCM GPIO numbers
        GPIO.setup(LCD_E, GPIO.OUT)  # E
        GPIO.setup(LCD_RS, GPIO.OUT) # RS
        GPIO.setup(LCD_D4, GPIO.OUT) # DB4
        GPIO.setup(LCD_D5, GPIO.OUT) # DB5
        GPIO.setup(LCD_D6, GPIO.OUT) # DB6
        GPIO.setup(LCD_D7, GPIO.OUT) # DB7
        GPIO.setup(LED_ON, GPIO.OUT) # Backlight enable

        # Initialise display
        lcd_init()

        # Toggle backlight on-off-on
        lcd_backlight(True)
        time.sleep(0.5)
        lcd_backlight(False)
        time.sleep(0.5)
        lcd_backlight(True)
        time.sleep(0.5)

        while True:

          # Send some centred test
          lcd_string("--------------------",LCD_LINE_1,2)
          lcd_string("Rasbperry Pi",LCD_LINE_2,2)
          lcd_string("Model B",LCD_LINE_3,2)
          lcd_string("--------------------",LCD_LINE_4,2)

          time.sleep(3) # 3 second delay

          lcd_string("Raspberrypi-spy",LCD_LINE_1,3)
          lcd_string(".co.uk",LCD_LINE_2,3)
          lcd_string("",LCD_LINE_3,2)
          lcd_string("20x4 LCD Module Test",LCD_LINE_4,2)

          time.sleep(3) # 20 second delay

          # Blank display
          lcd_byte(0x01, LCD_CMD)

          time.sleep(3) # 3 second delay

      def lcd_init():
        # Initialise display
        lcd_byte(0x33,LCD_CMD) # 110011 Initialise
        lcd_byte(0x32,LCD_CMD) # 110010 Initialise
        lcd_byte(0x06,LCD_CMD) # 000110 Cursor move direction
        lcd_byte(0x0C,LCD_CMD) # 001100 Display On,Cursor Off, Blink Off
        lcd_byte(0x28,LCD_CMD) # 101000 Data length, number of lines, font size
        lcd_byte(0x01,LCD_CMD) # 000001 Clear display
        time.sleep(E_DELAY)

      def lcd_byte(bits, mode):
        # Send byte to data pins
        # bits = data
        # mode = True  for character
        #        False for command

        GPIO.output(LCD_RS, mode) # RS

        # High bits
        GPIO.output(LCD_D4, False)
        GPIO.output(LCD_D5, False)
        GPIO.output(LCD_D6, False)
        GPIO.output(LCD_D7, False)
        if bits&0x10==0x10:
          GPIO.output(LCD_D4, True)
        if bits&0x20==0x20:
          GPIO.output(LCD_D5, True)
        if bits&0x40==0x40:
          GPIO.output(LCD_D6, True)
        if bits&0x80==0x80:
          GPIO.output(LCD_D7, True)

        # Toggle 'Enable' pin
        lcd_toggle_enable()

        # Low bits
        GPIO.output(LCD_D4, False)
        GPIO.output(LCD_D5, False)
        GPIO.output(LCD_D6, False)
        GPIO.output(LCD_D7, False)
        if bits&0x01==0x01:
          GPIO.output(LCD_D4, True)
        if bits&0x02==0x02:
          GPIO.output(LCD_D5, True)
        if bits&0x04==0x04:
          GPIO.output(LCD_D6, True)
        if bits&0x08==0x08:
          GPIO.output(LCD_D7, True)

        # Toggle 'Enable' pin
        lcd_toggle_enable()

      def lcd_toggle_enable():
        # Toggle enable
        time.sleep(E_DELAY)
        GPIO.output(LCD_E, True)
        time.sleep(E_PULSE)
        GPIO.output(LCD_E, False)
        time.sleep(E_DELAY)

      def lcd_string(message,line,style):
        # Send string to display
        # style=1 Left justified
        # style=2 Centred
        # style=3 Right justified

        if style==1:
          message = message.ljust(LCD_WIDTH," ")
        elif style==2:
          message = message.center(LCD_WIDTH," ")
        elif style==3:
          message = message.rjust(LCD_WIDTH," ")

        lcd_byte(line, LCD_CMD)

        for i in range(LCD_WIDTH):
          lcd_byte(ord(message[i]),LCD_CHR)

      def lcd_backlight(flag):
        # Toggle backlight on-off-on
        GPIO.output(LED_ON, flag)

      if __name__ == '__main__':

        try:
          main()
        except KeyboardInterrupt:
          pass
        finally:
          lcd_byte(0x01, LCD_CMD)
          lcd_string("Goodbye!",LCD_LINE_1,2)
          GPIO.cleanup()


      Remember to update the constants at the top of the script to match the GPIO signals you are using on your Pi. As always these GPIO references are the Broadcom signal names as described in my GPIO header article.


      Take a look at my other LCD Screen related posts which include details of the 16×2 version of the screen used in this post.

      Share. Facebook Twitter Pinterest LinkedIn Tumblr Email
      Previous Article16×2 LCD Module Control With Backlight Switch
      Next Article Reading Analogue Sensors With One GPIO Pin

      Related Posts

      Elecrow Meteor IPS Touchscreen with RGB LEDs

      Pi Pico Pinout Display on the Command Line

      How to Add a Raspberry Pi Pico Reset Button

      28 Comments

      1. Karel on August 16, 2012 8:16 am

        This is excellent work, and I think I will get one of these as a external link for my RasPi!

        I do have one question though, what is the model/part number for the 20×4 LCD module, I am having some trouble finding the one pictured and am a little reluctant to get one that isn’t exactly the same ‘just in case’ the pinouts etc are different.

        It looks like HD44780 isn’t what I need to be searching on 🙂

        Reply
        • Karel on August 24, 2012 7:54 am

          I found one, thus proving my ignorance as far as electronic kit is concerned 🙂
          Now to wait for it to arrive 8-B

          Reply
      2. an ignorant, but eager, noob on August 28, 2012 3:11 am

        Hey there — so I have the breakout board, some wires and the LCD screen. What I don’t have are the various resistors. I am totally eager to get going, but clearly, I have no idea what I am doing. I don’t want to fry the Pi or the LCD screen. But there are folks who are wiring directly from the GPIO to the LCD screens out there, so how neccesary are the resistors?

        I have to find a site to go over the basics of how the breakout board even works. I can’t say I understand anything, but am definitely up to learn. 🙂

        Thanks for the site, I’ll come back here when I have a little more knowledge of what I am doing.

        Reply
        • Matt on August 28, 2012 7:24 pm

          The resistors are there to limit the current to the backlight input and to divide the voltage to the contrast input.

          The contrast resistors are not required they just allow you to tweak the contrast. The backlight resistor is required otherwise you are in danger of damaging the backlight. Some LCD modules have built in backlight resistors but it isn’t always clear if these are there … so I play it safe.

          I got all my resistors from eBay. It is worth spending a few pounds/dollars getting a collection of the more common values. In my circuits I tend to use 560, 1K, 2K, 5K, 10K and 27K values so I just bought 100 of each.

          Reply
        • Mark Routledge on September 8, 2012 3:32 pm

          Depending on where you’re based Maplins (in the UK) do a reasonable bundle (of mixed values). Get the usual flesh coloured one’s not the blue ones! They all look similar but once you get used to the colours you’ll be fine.

          Reply
      3. Alessandro on September 26, 2012 8:23 pm

        Great job, very nice project, I’m beginner and I’ll try the project with good result! But I’ve a little question, someone can help me to create a special character for degrees symbols (°) in python? I found a lot of guide but nothing in python!

        Reply
        • sma23 on October 7, 2012 11:06 pm

          Hi,
          searching some documentation on the HD44780 you can find the ° character under the value 223 (0xDF). You can then for example build a string you can send like this:
          line = str(temperature) + chr(223) + ‘C’

          That would make a string with the value of the variable “temperature”,the ° symbol and then a C for Celsius (… 34°C).

          Hope that helps
          Sma

          Reply
      4. Chouaieb on May 6, 2014 2:16 pm

        Hello everyone.
        first of all thanks for this tutorial it helped me alot getting a 4×20 JHD 204A lcd to work with my Pi.
        i used the same wiring the first time ,with no resistor on PIN 15 (the lcd have one onboard) and i’ve wired the CONTRAST PIN to the ground.
        the LCD worked just fine for Two days.but now with the same exact wiring it doesn’t work any more!! any ideas why is this?
        ps: i had many problem with same LCD in the past when i tried to get it to work with a PIC MCU , i’ve tried every thing but it just won’t work.
        i’m begining to think that the problem is with LCD it self,could this be the case??

        thanks in advance for any help

        Reply
      5. Marco on July 4, 2014 1:57 pm

        Would it be possible to use another pin as RS pin? This is now configured on P1-26 GPIO7, but I allready have another function configured on this pin.

        Reply
        • Matt on July 4, 2014 8:00 pm

          Yes you could use a different GPIO pin. As long as you tweak the reference in the code it would work fine.

          Reply
      6. Pedro Rodrigues on September 10, 2014 1:58 am

        Hi.

        I have 20×4 lcd module lcm1602 with hd44780. I’m using I2c.

        Do you have sample code for using that with I2c on Raspberry Pi B+ ?
        I want do scrolling (up, down, left , right) and custom character.

        Reply
      7. Phil Schwartz on November 5, 2014 2:55 am

        Hello,
        I have modified your program to use the pyRock.gpio library on the Radxa Rock Pro SBC. Can I share the modified program with the other users on the Radxa forum? I have left the first ten comment lines intact, giving you full credit and can post a link to this web page. If yes then I can email the article to you before sending it to Radxa.

        Thanks for sharing your program, it has been an inspiration to this python newbie.

        Reply
        • Matt on November 5, 2014 10:47 am

          Hi Phil, that’s fine. Thanks for asking 🙂

          Reply
      8. matt on December 11, 2014 7:23 pm

        hi matt,

        firstly thanks for producing a great blog, i am looking to get one of these 20×4 LCD screens as an xmas project, is there any chance you can post up the exact resistors, transistors and potentiometer I need to get this working without killing my pi?
        many thanks,

        Reply
      9. tatoosh on January 12, 2015 6:58 pm

        THX a lot for the tutorial and the sample code. Works very good

        Reply
      10. etype on February 28, 2015 10:44 pm

        can someone please help me to setup a 24×3 lcd on my raspberry pi b+

        it has 18 pins link to photo here http://www.etypetv.com/pi

        i need pin outs for this display to raspberry pi b+

        Reply
      11. Johnny on March 16, 2015 5:29 pm

        I made it exactly the same like you, used the same code like you, but it won’t work. My display just shows black bars in the first and third row. One thing I’ve noticed it that my display works fine with Arduino, and the characters are darker on the Arduino than on the Pi. How can I fix this? Thanks!

        Reply
      12. Tamas on March 18, 2015 4:52 pm

        Hi Matt,

        I’m beginner as well and I would like to have 2 questions regards to the wiring diagram:
        – what is the second variable resistors value (2k or 5k) connected to PIN15
        – on the breadboard diagram the second variable resistor has only 2 leg connected, first one is to PIN15, the second one is to positive rail via 560 ohm. What about the third pin of the variable resistor?

        Reply
        • Matt on March 30, 2015 12:34 pm

          It’s 2K. When I wrote the article I intended to use a 5K but changed it to 2K. It doesn’t really matter. It only needs to allow you to increase the value from the minimum of 560.

          If you are using a variable resistor to split a voltage you use 3 legs. 1 for the maximum voltage, 1 for ground and the other which “sweeps” in-between. I do this for the contrast as it needs a variable voltage between 0 and 5V.

          If you simply want it to act as a resistor with a varying value you only need to use one of the legs and the and the leg that “sweeps” between the other two.

          Reply
      13. Douglas.Lyle.Smith on March 21, 2015 8:09 am

        Not working for you? I might have found your solution (i’ve researched many websites and many people have this issue). I’m a beginner and I struggled with this for hours with the same problem. White boxes, right? Here’s the solution: GPIO pin 26 (RS) is board pin 37 (raspi 2). GPIO pin 24 is actually board pin 35. You might be doing it right for the data GPIO pins, but relating the board pins with LCD pin 4 and LCD pin 6. Check those pins and make sure you’re relating them to the GPIO pins 26 and 24 (board pins 37 and 35). I was using board pins 26 and 24. Good luck. It finally worked for me (4am here! and the funs just started)

        Reply
      14. Mike Street on April 1, 2015 10:53 pm

        Hi,

        Would like to firstly thank you for being the first script I came across that actually worked! It’s awesome! It naturally became part of my Pi weather station.

        I used your code as inspiration for the pip module I wrote for the LCD display – https://pypi.python.org/pypi/lcdscreen – would appreciate any feedback you have!

        Mike

        Reply
      15. Phil Rogers on May 11, 2015 1:39 pm

        An excellent article. I’m using a Raspberry Pi to make a controller for my home-build solar water heater. It reads temperature sensors and depending on their values, switches a pump on or off.
        Adding a display will allow me to display those temperatures and the pump status, allowing me to refine and optimise the controller software.
        Your article has saved me trying to work it all out for myself.

        Reply
      16. Wolfram Esser on July 30, 2015 7:09 am

        Hi, first: thanks for the tut.

        One observation/hint from my side:
        When using your Python script, my display was quite “unstable”. It was displaying the right text, the backlight worked. Seemed fine! But when I unplugged Ethernet from my Raspberry or touched the silver shielding of the Ethernet jack, my text was erased by black squares. I could even reproduce this with only moving my hand close to to the wires that connected the Raspi with the LCD. Looking at the data sheet the “black square” is equal to character 255 = 0xFF = 11111111. So I measured the GPIO pins after your python script terminated and text was displayed – they all had +5V! So obviously in this state only a smal “athmospheric disturbance” was needed for the display to fill everything witch black squares.

        I then found out that a GPIO.cleanup() – which you do at the end of your script – does switch all used GPIOs into Input mode which means they have a current attached.

        My solution for becoming my LCD stable was to:
        => remove the GPIO.cleanup() line from your skript.
        Now after your script runs, all my GPIOs have +0V and no black squares erase my text anymore when I touch or come close to the wires.

        Thanks again for your great tut!

        Wolfram from Germany

        Reply
      17. Alex on October 31, 2015 7:41 pm

        Hi, thanks for the tut! How can i create big symbols using 2,3 or 4 lines with this code ( how to change it)? Thanks!

        Reply
      18. Paul on August 2, 2017 4:21 pm

        Hello,

        Thanks for the code and description. It helped me to get my display working. I’ll now have a play and see what I can make.

        Quick question 🙂 Where did you find the information for LCD RAM addresses for the LCD LINE’s?
        LCD_LINE_1 = 0x80 # LCD RAM address for the 1st line

        Thanks.

        Paul

        Reply
        • Matt on August 7, 2017 11:20 am

          Hi Paul, in the datasheet the “Set DRAM address” command is 001xxxxxxx. 010000000 is the first address and that is equal to 0x80.

          Reply
      19. Sund on November 9, 2017 11:32 am

        Is there a way to invert the text? Also, is there a list of characters available and how I input those?

        Reply
      20. Pingback: Raspberry Pi Plex Server Monitor | Average Maker

      Leave A Reply Cancel Reply

      This site uses Akismet to reduce spam. Learn how your comment data is processed.

      Recent Posts
      March 13, 2023

      Elecrow Meteor IPS Touchscreen with RGB LEDs

      December 26, 2022

      Pi Pico Pinout Display on the Command Line

      December 23, 2022

      How to Add a Raspberry Pi Pico Reset Button

      November 20, 2022

      Pi Pico Onboard LED

      November 14, 2022

      Pi Pico W Pinout and Power Pins

      Categories
      • 1-wire
      • 3D Printing
      • Add-ons
      • BBC Micro:bit
      • BerryClip
      • Books
      • Camera Module
      • Cases
      • Events
      • General
      • Hardware
      • I2C
      • Infographics
      • Interfaces
      • Minecraft
      • Model A+
      • Model B+
      • News
      • Pi Models
      • Pi Pico
      • Pi Zero
      • Power
      • Programming
      • Python
      • Raspberry Pi OS
      • Raspbian
      • RetroGaming
      • Robotics
      • Sensors
      • Software
      • SPI
      • Tutorials & Help
      Tags
      Arduino audio battery berryclip Birthday bluetooth cambridge camera CamJam DigiMakers display games GPIO I2C interface Kickstarter Kodi LCD LED Linux media Minecraft Model A motionEyeOS PCB photography photos Pi-Lite Pi Pico power python Raspberry Jam Raspberry Pi Bootcamp raspbian Retrogaming retroPie screen SD card security sensor SPI SSH temperature ultrasonic video
      Raspberry PI Related
      • Adafruit Blog
      • Average Maker
      • Official RaspBerry Pi Site
      • Raspberry Pi Pod
      • RasPi.tv
      • RaspTut
      • Stuff About Code
      Tech Resources
      • MattsBits – Pi Resources
      • Microbit Spy
      • Technology Spy
      Archives
      About

      Unofficial site devoted to the Raspberry Pi credit card sized computer offering tutorials, guides, resources,scripts and downloads. We hope to help everyone get the most out of their Pi by providing clear, simple articles on configuring, programming and operating it.

      Popular Posts
      September 19, 2014

      Top 5 Reasons The Raspberry Pi Sucks

      July 27, 2012

      16×2 LCD Module Control Using Python

      October 20, 2013

      Analogue Sensors On The Raspberry Pi Using An MCP3008

      Recent Posts
      March 13, 2023

      Elecrow Meteor IPS Touchscreen with RGB LEDs

      December 26, 2022

      Pi Pico Pinout Display on the Command Line

      December 23, 2022

      How to Add a Raspberry Pi Pico Reset Button

      Facebook Twitter Instagram Pinterest YouTube RSS

      Entries RSS | Comments RSS

      This site is not associated with the official Raspberrypi.org site or the Raspberry Pi Foundation. Raspberry Pi is a trademark of the Raspberry Pi Foundation.

      Copyright © 2022 - All Rights Reserved - Matt Hawkins

      mastodon.social@RPiSpy

      Type above and press Enter to search. Press Esc to cancel.
