      Create Raspberry Pi SD Cards Using Fedora ARM Installer

      5
      By Matt on January 9, 2013 Raspbian, Tutorials & Help

      SD CardsIt’s possible to buy preloaded SD cards to use with your Raspberry Pi but at some point you will need to learn to create your own. This will allow to update your system for free or allow you to create multiple SD cards, perhaps one per project.

      In this article I will explain how to write the latest official Raspbian image to an SD card using the free Fedora ARM Installer utility. Apart from a few minutes of your time this process is completely free.

      [UPDATE Nov 2016 : The Fedora ARM Installer is no longer available on Windows. I would recommend using Etcher instead. You can read how to use Etcher in my Write SD Card Images Using Etcher On Windows, Linux & Mac post.

      Step 1 – Obtain the latest Raspbian “Wheezy” image

      Head over to RaspberryPi.org and go to their Downloads page. You can either go for the direct or BitTorrent link. I prefer the Torrent as it is usually faster. Either way you will end up with a 500MB ZIP file.

      7zip LogoStep 2 – Extract the image file

      Using your favourite compression tool (I prefer 7Zip as it is open source and free) extract the .img file within the ZIP file. Once extracted your img file will be over 1.8GB but smaller than 2GB. This is good as it means it will fit on a 2GB (or larger) SD card.

      Step 3 – Download Fedora ARM Installer

      Fedora Logo

      To write the image to the SD card we are going to use the Fedora ARM Installer utility. So head over to the Fedora website and download the zip file.

      Extract the contents into a folder. There is no need to install this utility as it can be run directly from its own folder once extracted from the zip file.

      Step 4 – Run Fedora ARM Installer

      • Right click on the “fedora-arm-installer.exe” file and select “Run as administrator”.

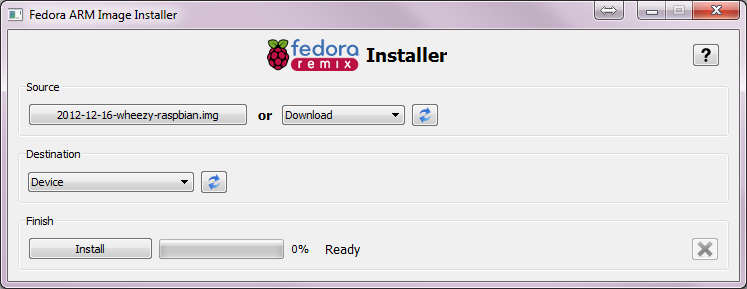

      Fedora ARM Installer - Main Window
      The main application window
      • Click the “Browse” button and select the img file you extracted in Step 2.
      • Select the drive letter of your SD card in the “Device” list.
      • Double check the drive letter you just selected!
      • Click the “Install” button to start the write process.

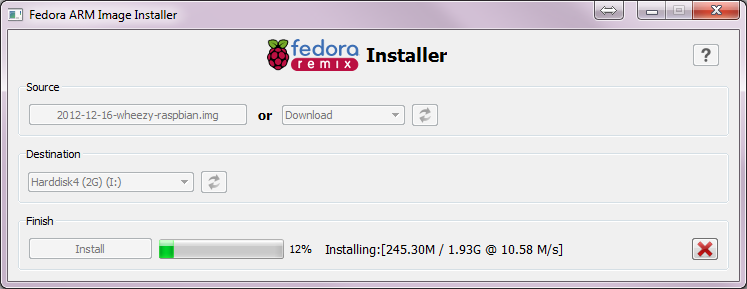

      Fedora ARM Installer - Write Process
      The write process

      Wait for the process to complete. Once completed you can close the application using the X in the top right of the application window.

      Step 5 – Eject

      SanDisk 4GB SD CardNow the image has been written you can eject the SD card, insert it into your Raspberry Pi and power it up.

      Note : This process completely overwrites any existing data on your SD card so make sure you are writing to the correct card. To avoid any chance of mistakes I remove all USB storage devices (SD cards, hard drives etc) before writing images.
